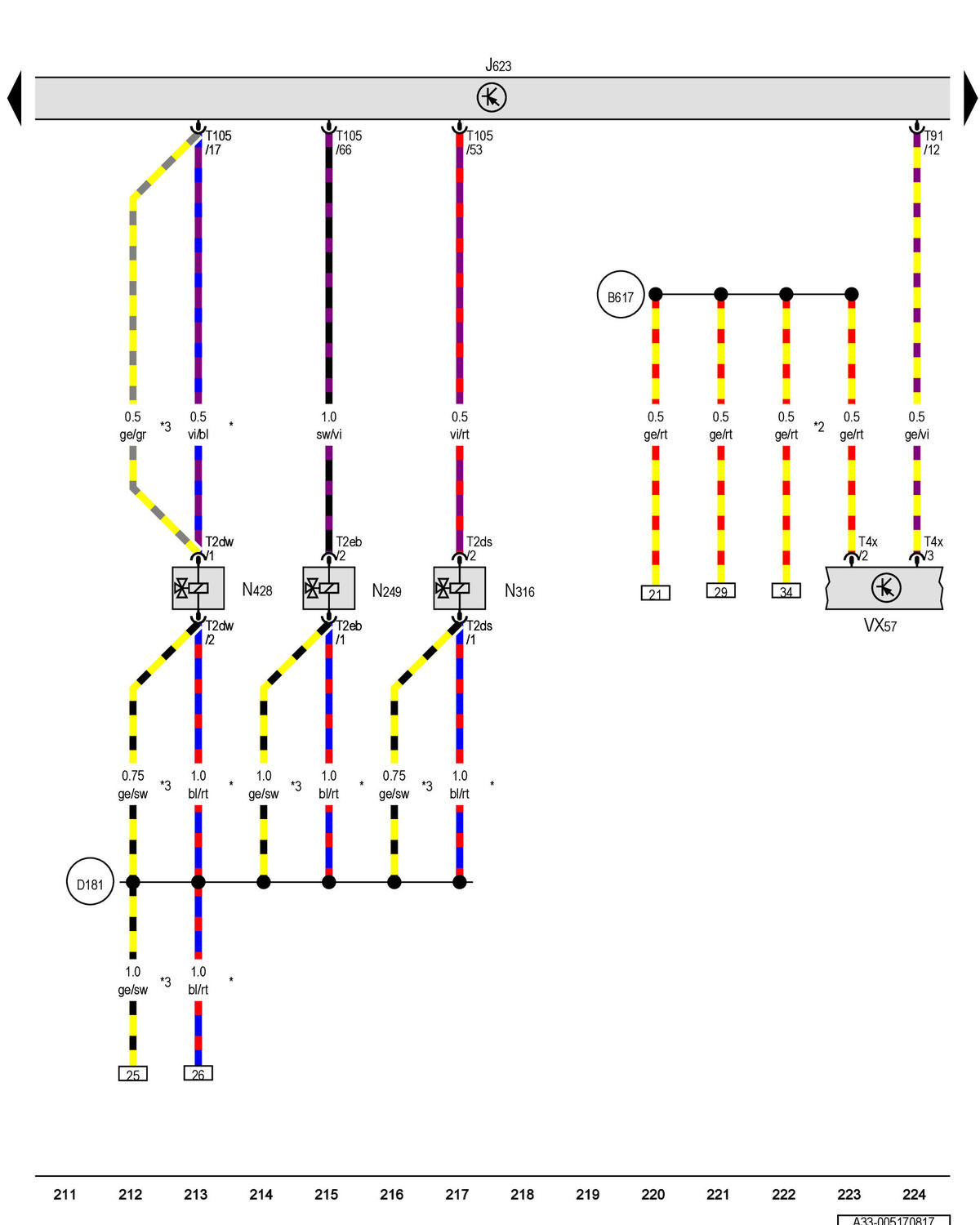

Engine/Motor Control Module, Turbocharger RECIRCULATION Valve, Intake Manifold Runner Control Valve, Oil Pressure Regulation Valve: Notes

GWWA33-005170817Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
