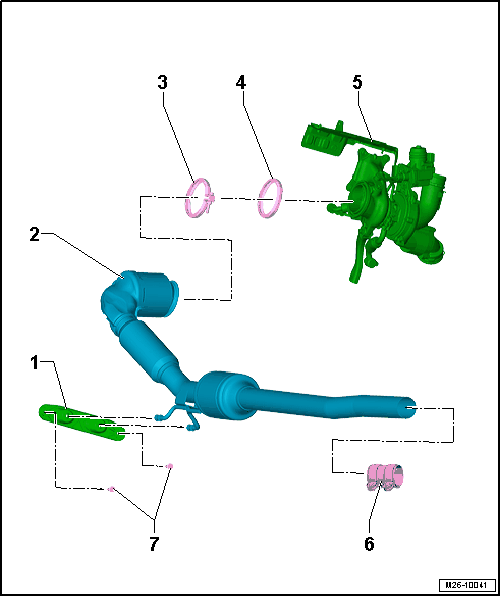

Overview - Emissions Control System
- Bracket
- For catalytic converter
- To subframe
- Catalytic Converter
- With front exhaust pipe
- Protect catalytic converter from shocks and impact stress
- Removing and installing. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING .
- V-Clamp
- Tightening specification. Refer to OVERVIEW - TURBOCHARGER .
- Replace after removing
- Seal
- Replace after removing
- Turbocharger
- Removing and installing. Refer to TURBOCHARGER .
- Front Clamping Sleeve
- 30 Nm
- Before tightening, align the exhaust system without tension. Refer to CLAMPING SLEEVE INSTALLATION POSITION .
- Tighten threaded connections evenly.
- Bolt
- 23 Nm
