Overview - Microphone Unit

The Telephone Microphone -R38- -1- is installed in the Front Interior Lamp -W1-.

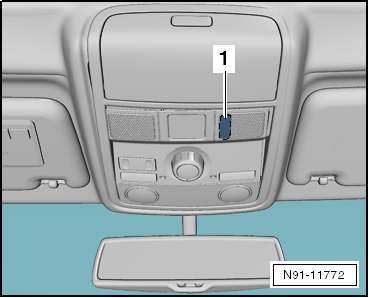

Fig 1: Exploded View Of Microphone Unit
GWWN91-11772Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
