Subwoofer -R211-, REMOVING AND INSTALLING: Installing
Install in reverse order of removal. Note the following:
CAUTION:
If the subwoofer starts to fall down after installing the first bolt, then mounting tabs still connected will get damaged. Have a second technician hold the subwoofer to keep it from falling down.

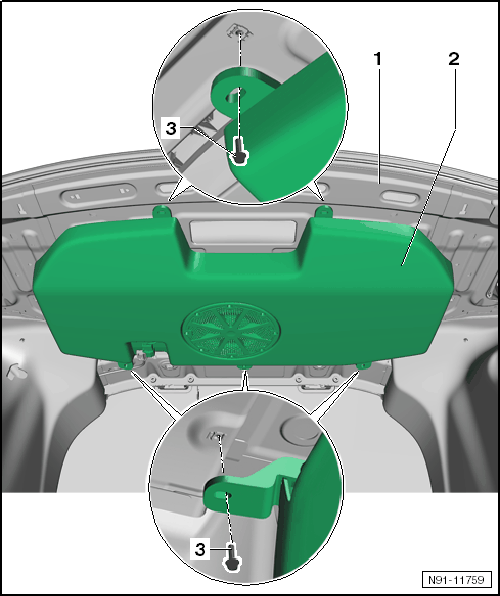

-- Lift the Subwoofer -R211- -2- under the rear shelf -1-.
-- Position the Subwoofer -R211- so that the brackets line up with the nuts in the bracket in the rear shelf -1-.
-- Tighten the bolts -3- on the Subwoofer -R211- to the tightening specification.
