Component Location Overview - Rearview Camera System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

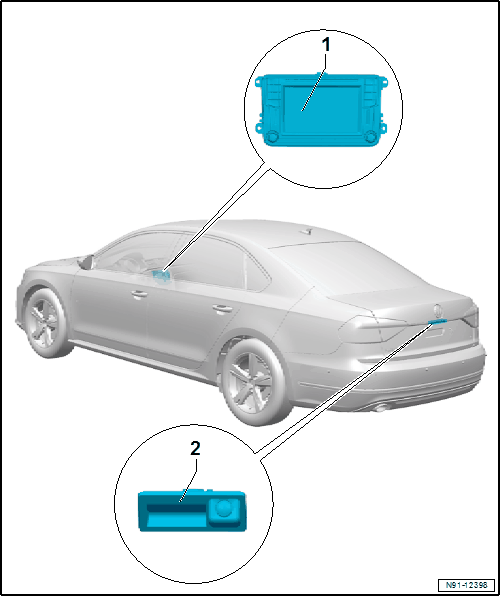

1. Information Electronics Control Module 1 -J794-
   • Inside the center of the instrument panel
   • Connected with Front Information Display Control Head -J685-
   • Removing and installing. Refer to NAVIGATION SYSTEM CONTROL MODULE, REMOVING AND INSTALLING .
   • Connector Assignment. Refer to Wiring Diagram, Troubleshooting & Component locations.
2. Rearview Camera -R189-
   • Component location: in the rear lid handle button
   • Removing and installing. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
