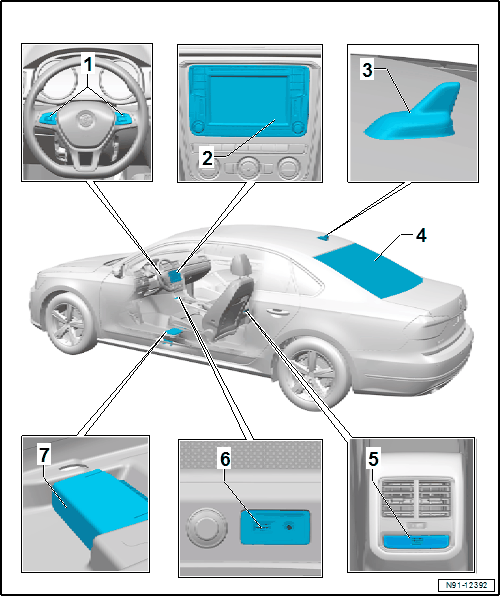

Component Location Overview - Infotainment System
- Multifunction Buttons in Steering Wheel
- Left Multifunction Buttons on Steering Wheel -E440-
- Right Multifunction Buttons on Steering Wheel -E441-
- Removing and installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- Inside the center of the instrument panel
- Connected with Front Information Display Control Head -J685-
- Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Connector Assignment. Refer to Wiring Diagram, Troubleshooting & Component locations .
- Roof Antenna -RX5-
- Removing and installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Window Antenna
- Refer to ANTENNA SYSTEMS for more information.
- USB Charging Socket 1 -U37-
- On the end of the rear center console
- Removing and installing. Refer to USB Charging Socket 1 -U37-. AND INSTALLING .
- External Audio Source Connection -R199-
- In the front center armrest storage compartment
- Removing and installing. Refer to External Audio Source Connection -R199-, REMOVING AND INSTALLING .
- Amplifier -R12-
- Under the left front seat
- Removing and installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
