External Audio Source Connection -R199-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment.

-- If equipped remove the ignition key.

-- Remove the center console cover. Refer to CENTER CONSOLE .

-- Removing and installing the front center console storage compartment. Refer to CENTER CONSOLE .

-- Lift the front center console storage compartment.

-- Disconnect the connectors.

NOTE:

Depending on the version the connector assignment can differ.

-- Remove the front center console storage compartment.

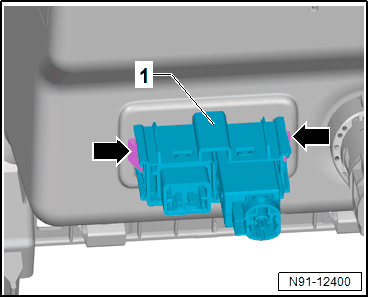

-- Press the clips -arrows- together on the External Audio Source Connection -R199- using the :3409 and remove.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
