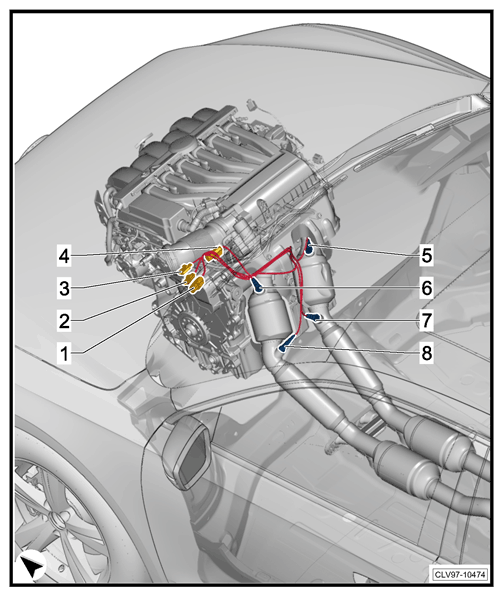

3.6L FSI

  1. 1  - 6-Pin Connector -T6AF-
  2. 2  - 4-Pin Connector -T4AO-
  3. 3  - 4-Pin Connector -T4Y-
  4. 4  - 6-Pin Connector -T6W-
  5. 5  - Oxygen Sensor 1 Before Catalytic Converter -GX10-
  6. 5  - Heated Oxygen Sensor -G39-
  7. 5  - Oxygen Sensor Heater -Z19-
  8. 6  - Oxygen Sensor 2 Before Catalytic Converter -GX11-
  9. 6  - Heated Oxygen Sensor 2 -G108-
  10. 6  - Oxygen Sensor 2 Heater -Z28-
  11. 7  - Oxygen Sensor 1 After Catalytic Converter -GX7-
  12. 7  - Oxygen Sensor After Three Way Catalytic Converter -G130-
  13. 7  - Heater For Oxygen Sensor 1 After Catalytic Converter -Z29-
  14. 8  - Oxygen Sensor 2 After Catalytic Converter -GX8-
  15. 8  - Oxygen Sensor 2 After Catalytic Converter -G131-
  16. 8  - Heater For Oxygen Sensor 2 After Catalytic Converter -Z30-
    G12751133Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
