Vehicle Rear - Left

  1. 1  - Left Tail Lamp -MX3-
  2. 2  - Left Tail Lamp 2 -MX5-
  3. 3  - Left License Plate Lamp -X4-
  4. 4  - Compass Magnetic Field Sensor -G197-
  5. 5  - Right License Plate Lamp -X5-
  6. 6  - Rear Lid Handle -EX37-
  7. 6  - Release Button In Rear Lid Handle -E234-
  8. 6  - Rearview Camera -R189-
  9. 7  - Rear Lid Lock Unit -VX25-
  10. 7  - Rear Lid Lock Unit -F256-
  11. 7  - Rear Lid Opening Motor -V254-
  12. 7  - Rear Lid Lock/Alarm/Central Locking Switch -F124-
  13. 8  - Access/Start System Antenna In Rear Bumper -R136-
  14. 9  - Left Rear Center Parking Aid Sensor -G204-
  15. 10  - Rear Lid Opener Sensor 2 -G760-
  16. 11  - Power Rear Lid Opener Sensor -G750-
  17. 12  - Rear Lid Opener Control Module -J938-
  18. 13  - Rear Fog Lamp Bulb -M108-
  19. 14  - Left Rear Parking Aid Sensor -G203-
  20. 15  - Lane Change Assistance Control Module 2 -J770-
  21. 16  - Left Rear Parallel Parking Assistance Sensor -G716-

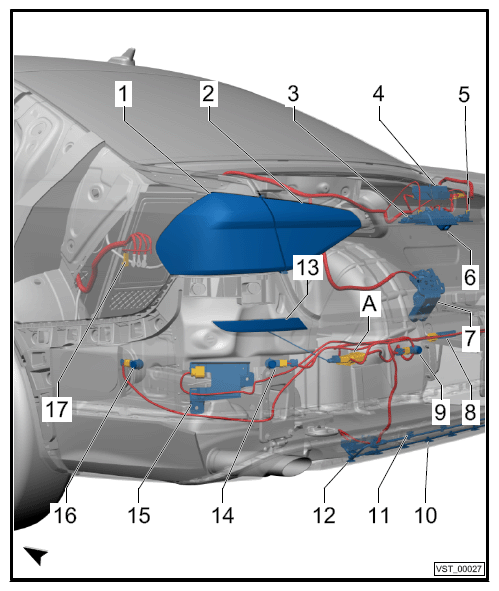

    G12756580Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  22. 17  - Battery Interrupt Igniter -N253-
    • Only For Vehicles With A Battery In The Luggage Compartment
  23. A  - 14-Pin Connector -T14SH-
  24. A  - 10-Pin Connector -T10SH-
