Auto. Trans., 09G

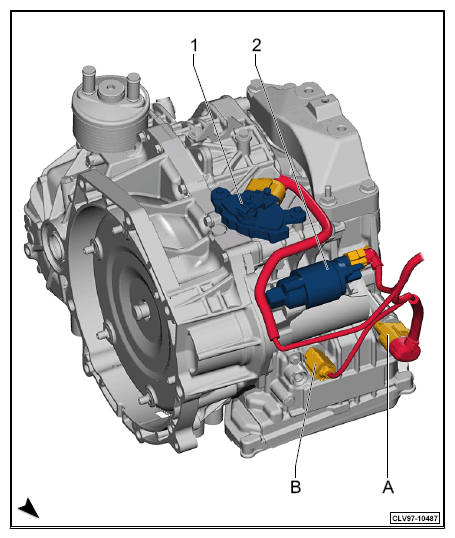

  1. Multifunction Transmission Range Switch -F125-
  2. Starter -B-
  1. 14-Pin Connector -T14E-
  2. 8-Pin Connector -T8-
    G12750580Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
