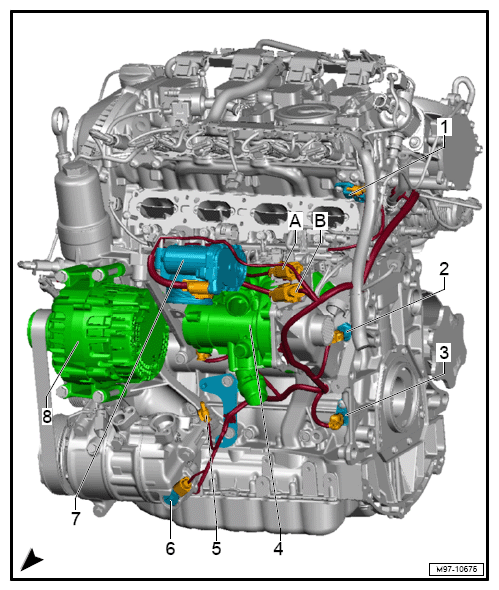

2.0L TFSI BZ, DDSA/DDSB Front

  1. 8-Pin Connector -T8I-, Black
  2. 14-Pin Connector -T14B-, Black
  1. Camshaft Position Sensor -G40-
  2. Oil Pressure Switch, Level 3 -F447-
  3. Engine Speed Sensor -G28-
  4. Engine Temperature Control Module -GX33-
    • Engine Temperature Control Actuator -N493-
  5. Heater Support Pump -V488-
  6. A/C Compressor Regulator Valve -N280-
  7. Throttle Valve Control Module -GX3-
    • Throttle Valve Control Module -J338-
    • EPC Throttle Drive -G186-
    • EPC Throttle Drive Angle Sensor 1 -G187-
    • EPC Throttle Drive Angle Sensor 2 -G188-
  8. Generator With Voltage Regulator -CX1-
    • Voltage Regulator -C1-
    G12756543Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
