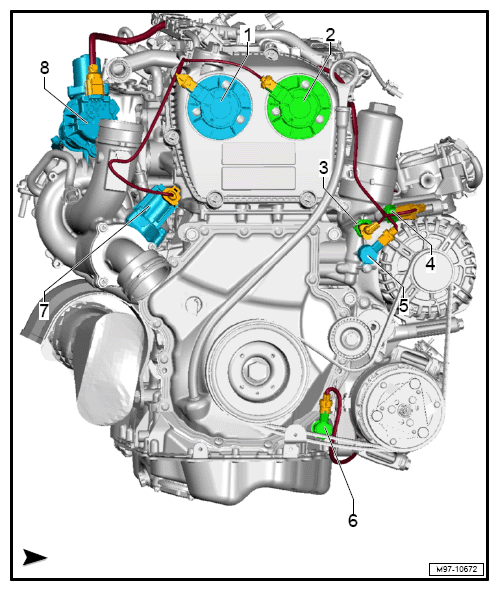

2.0L TFSI BZ DDSA/DDSB Right

  1. Exhaust Camshaft Adjustment Valve 1 -N318-
  2. Camshaft Adjustment Valve 1 -N205-
  3. Oil Pressure Switch -F1-
  4. Reduced Oil Pressure Switch -F378-
  5. Piston Cooling Nozzle Control Valve -N522-
  6. Oil Pressure Regulation Valve -N428-
  7. Turbocharger Recirculation Valve -N249-
  8. Charge Air Pressure Actuator -V465-
    G12756546Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
