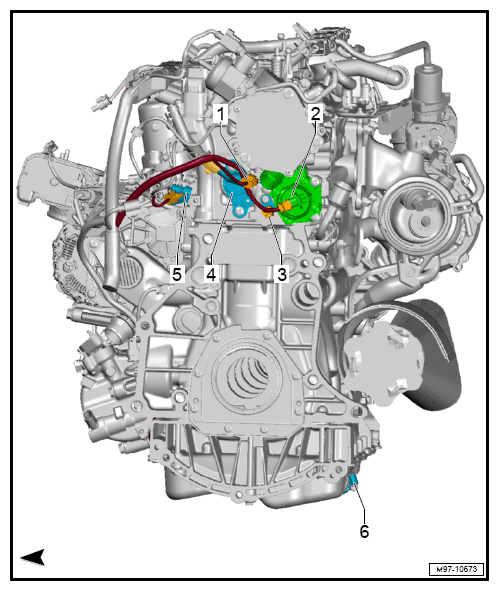

2.0L TFSI BZ DDSA/DDSB Left

  1. Secondary Air Injection Sensor 1 -G609-
  2. Secondary Air Injection Solenoid Valve -N112-
  3. Engine Coolant Temperature Sensor -G62-
  4. Coolant Shut-Off Valve -N82-
  5. Heater Support Pump -V488-
  6. Oil Level Thermal Sensor -G266-
    G12756545Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
