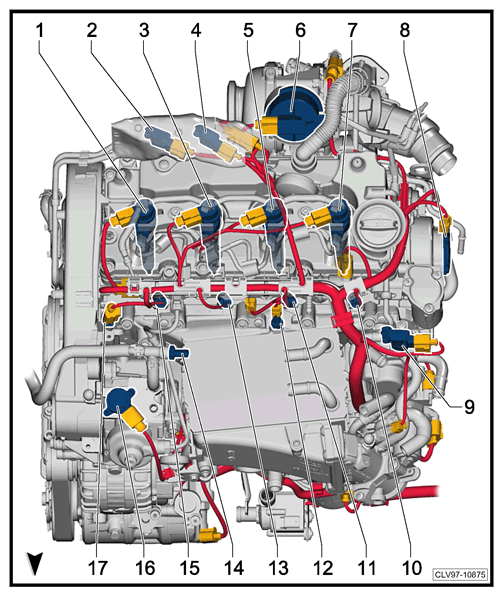

2.0L TDI, CVCA/DEKA Top

  1. Cylinder 1 Fuel Injector -N30-
  2. Differential Pressure Sensor -G505-
  3. Cylinder 2 Fuel Injector -N31-
  4. Exhaust Pressure Sensor 1 -G450-
  5. Cylinder 3 Fuel Injector -N32-
  6. Charge Pressure Actuator Position Sensor -G581-
  7. Cylinder 4 Fuel Injector -N33-
  8. Camshaft Adjustment Valve 1-N205-
  9. Charge Air Pressure Sensor -G31-
  10. Glow Plug 4 -QX4-
    • Cylinder 4 Combustion Chamber Pressure Sensor -G680-
    • Glow Plug 4 -Q13-
  11. Glow plug 3 -QX3-
    • Cylinder 3 Combustion Chamber Pressure Sensor -G679-
    • Glow Plug 3 -Q12-
  12. Charge Air Temperature Sensor After Charge Air Cooler -G811-
  13. Glow Plug 2 -QX2-
    • Cylinder 2 Combustion Chamber Pressure Sensor -G678-
    • Glow Plug 2 -Q11-
  14. Fuel Low Pressure Temperature And Pressure Sensor -GX20-
    • Fuel Temperature Sensor -G81-
    • Low Fuel Pressure Sensor -G410-
  15. Glow Plug 1 -QX1-
    • Cylinder 1 Combustion Chamber Pressure Sensor -G677-
    • Glow plug 1 -Q10-
  16. Fuel Metering Valve -N290-
  17. Cylinder Head Coolant Valve -N489-
    G12751087Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
