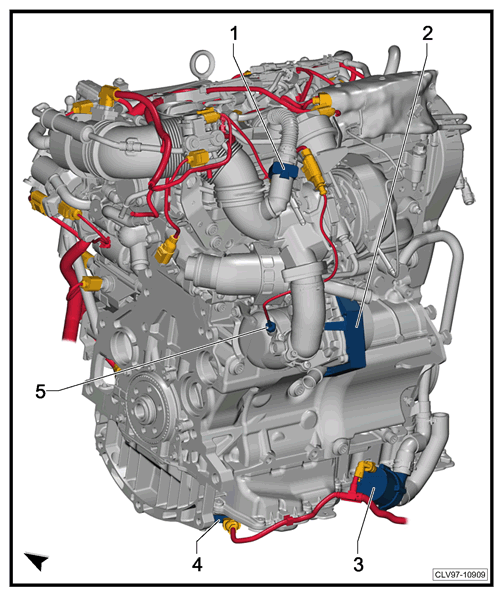

2.0L TDI, CVCA/DEKA Rear

  1. Positive Crankcase Ventilation Heating Element -N79-
  2. EGR Valve 2 -GX6-
    • EGR Motor 2 -V339-
    • EGR Position Sensor 2 -G466-
  3. Heater Support Pump -V488-
  4. Oil Level Thermal Sensor -G266-
  5. EGR Temperature Sensor -G98-
    G12751086Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
