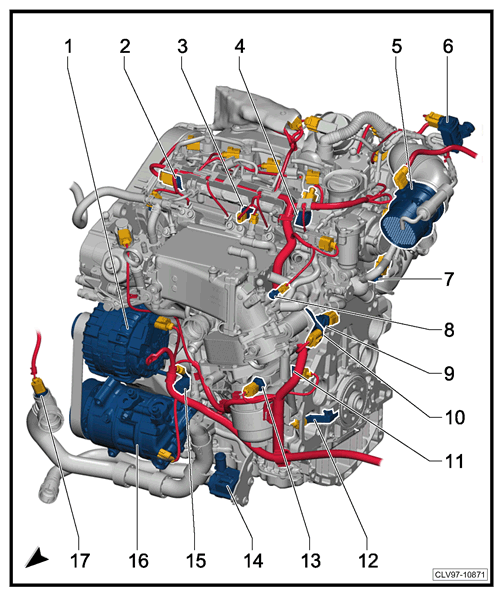

2.0L TDI, CVCA/DEKA Front
- 1 - Generator With Voltage Regulator -CX1-
- 2 - Fuel Pressure Sensor -G247-
- 3 - Camshaft Position Sensor -G40-
- 4 - Fuel Pressure Regulator Valve -N276-
- 5 - Mass Airflow Sensor -G70-
- 6 - Wastegate Bypass Regulator Valve -N75-
- 7 - Engine Coolant Temperature Sensor -G62-
- 8 - Intake Air Temperature Sensor -G42-
- 9
- EGR Valve 1 -GX5-
- EGR Motor -V338-
- EGR Potentiometer -G212-
- 10
- Throttle Valve Control Module -GX3-
- Throttle Valve Control Module -J338-
- Throttle Position Sensor -G69-
- 11 - Reduced Oil Pressure Switch -F378-
- 12 - Engine Speed Sensor -G28-
- 13 - Oil Pressure Switch -F1-
- 14 - Charge Air Cooling Pump -V188-
- 15 - Oil Pressure Regulation Valve -N428-
- 16 - A/C Compressor Regulator Valve -N280-
- 16 - Compressor Magnetic Clutch -N421-
- 17
- Engine Coolant Temperature Sensor On Radiator Outlet -G83-
