1.8L TFSI, CPKA/CPRA Top

  1. EVAP Canister Purge Regulator Valve 1 -N80-
  2. Ignition Coil 1 With Power Output Stage -N70-
  3. Ignition Coil 2 With Power Output Stage -N127-
  4. Ignition Coil 3 With Power Output Stage -N291-
  5. Ignition Coil 4 With Power Output Stage -N292-
  6. Fuel Pressure Regulator Valve -N276-
  7. Camshaft Position Sensor -G40-
  8. Cylinder 4 Fuel Injector -N33-
  9. Cylinder 3 Fuel Injector -N32-
  10. Knock Sensor 1 -G61-
  11. Engine Speed Sensor -G28-
  12. After-Run Coolant Pump -V51-
  13. A/C Compressor Regulator Valve -N280-
  14. Generator With Voltage Regulator -CX1-
    • Voltage Regulator -C1-
  15. Fuel Pressure Sensor -G247-
  16. Cylinder 2 Fuel Injector -N31-
  17. Cylinder 1 Fuel Injector -N30-
  18. Intake Manifold Runner Position Sensor -G336-

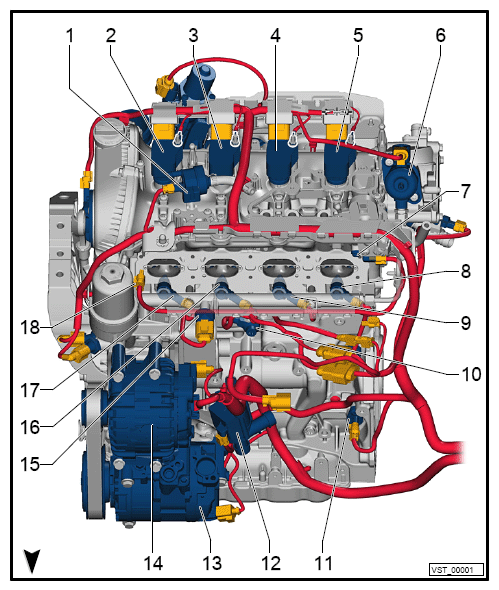

    G12756532Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
