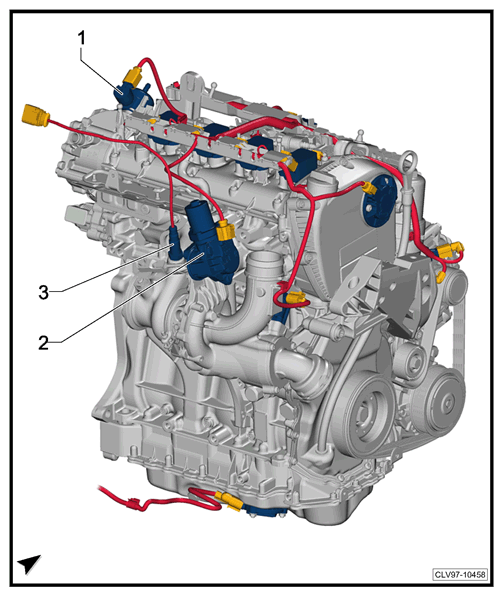

1.8L TFSI, CPKA/CPRA Rear

  1. Fuel Metering Valve -N290-
  2. Charge Pressure Actuator -V465-
  3. Oxygen Sensor 1 Before Catalytic Converter -GX10-
    • Heated Oxygen Sensor -G39-
    • Oxygen Sensor Heater -Z19-
    G12751082Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
