Car-Net Module Housing Loose At PDI (GROUP 70, NO. 16-01)

WARNING: This page is about the Jetta S, 1.4L Eng VIN 6, Automatic Trans, which is a different variant/trim than selected.

Publication date: 2016-10-25
Reference number: GROUP 70, NO. 16-01
Supersedes refnos: 2045671

CAR-NET MODULE HOUSING LOOSE AT PDI

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 70, NO. 16-01 (2045671), Date of Issue: October 25, 2016

VOLKSWAGEN:	2017 Jetta
GROUP:	70 - Trim - Interior

APPLICABLE MODELS AND YEARS

Model(s)	Year(s)	Eng. Code	Trans. Code	VIN Range From	VIN Range To
Jetta	2017	All	All	AJ_HM200001	AJ_HM258458

CONDITION

70 16 01 October 25, 2016 2045671

Car-Net Module Housing Loose at PDI

The Car-Net module housing may be loose underneath the passenger seat. This may be found during PDI or from a customer complaint.

TECHNICAL BACKGROUND

Cut-outs in the carpet may not have been removed in the factory which prevents the Car-Net module housing from being properly installed.

PRODUCTION SOLUTION

Production is removing the cut-out holes from the carpet to guarantee the correct fixation of the Car-Net module housing as of VIN AJ_HM258458.

SERVICE

Procedure

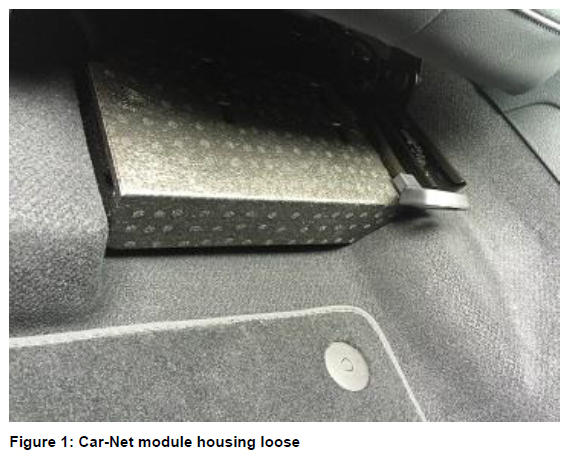

During PDI inspect the Car-Net module housing which is mounted underneath the passenger front seat (Figure 1).

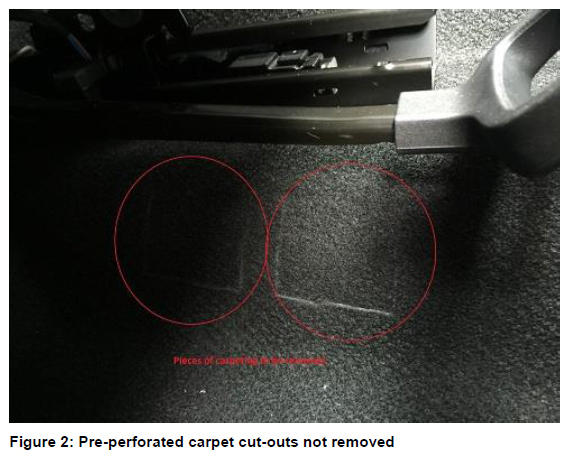

If the module housing is loose, not flat against the floor, or is rubbing the seat fore/aft adjustment lever, check that the pre-perforated cut-outs have been removed from the carpet (Figure 2).

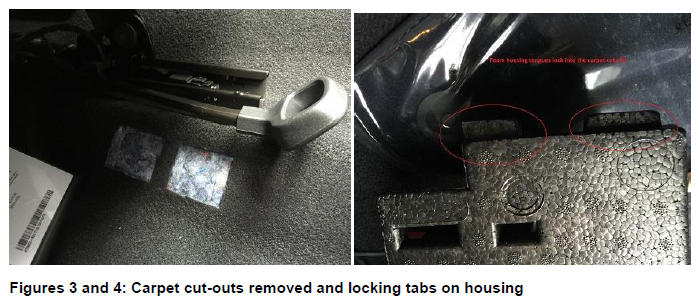

Remove the carpet cut-outs if they haven't already been removed and reinstall the module housing by first inserting the tabs on the housing through the cut-outs in the carpet, then pressing the housing down onto the carpet to secure the Velcro fastener (Figures 3 and 4).

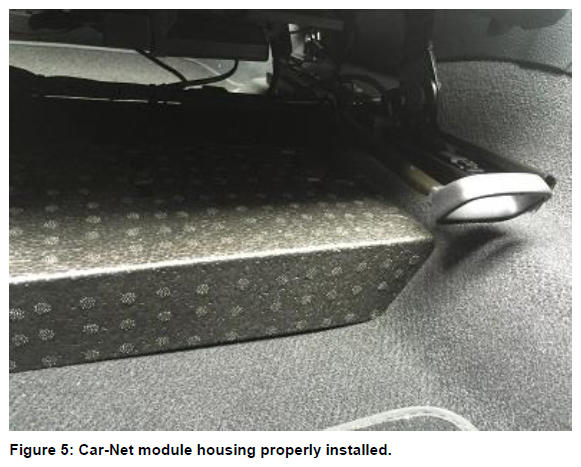

If the cut-outs have already been removed, ensure the housing is reinstalled properly (Figure 5).

WARRANTY

WARRANTY INFORMATION

To determine if this procedure is covered under Warranty, always refer to the Warranty Policies and Procedures Manual ⁽¹⁾

Model(s)

Year(s)

Eng. Code(s)

Trans. Code(s)

VIN Range From

VIN Range To

Jetta

2017

All

AJ_HM200001

AJ_HM258458

SAGA Coding

Claim Type:

Use applicable Claim Type ⁽¹⁾

Service Number:

Damage Code

HST

Damage Location (Depends on Service No.)

7041

0010

Use applicable when indicated in Elsa (L/R)

Parts Manufacturer

Jetta

3ME ⁽²⁾

Labor Operation ⁽³⁾:
Remove and install Car-Net Module Housing

70413399 = 10 TU

Causal Part: Select Labor Operation

70412399

Diagnostic Time ⁽⁴⁾

GFF Time expenditure

01500000 = 00 TU max.

Road Test

01210002 = 00 TU
01210004 = 00 TU

Technical Diagnosis

01320000 = 00 TU max.

Claim Comment: Input "As per Technical Bulletin 2045671" in comment section of Warranty Claim.

⁽¹⁾	Vehicle may be outside any Warranty in which case this Technical Bulletin is informational only

⁽²⁾	Code per warranty vendor code policy.

⁽³⁾	Labor Time Units (TUs) are subject to change with ELSA updates.

⁽⁴⁾	Documentation required per Warranty Policies and Procedures Manual.

REQUIRED PARTS AND TOOLS

No Special Parts required.

No Special Tools required.

ADDITIONAL INFORMATION

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.

DOCUMENT CONTROL REVISION

Instance Number	Published Date	Version Number	Reason For Update
2045671/1	10/25/16	V701601	Original Publication.
