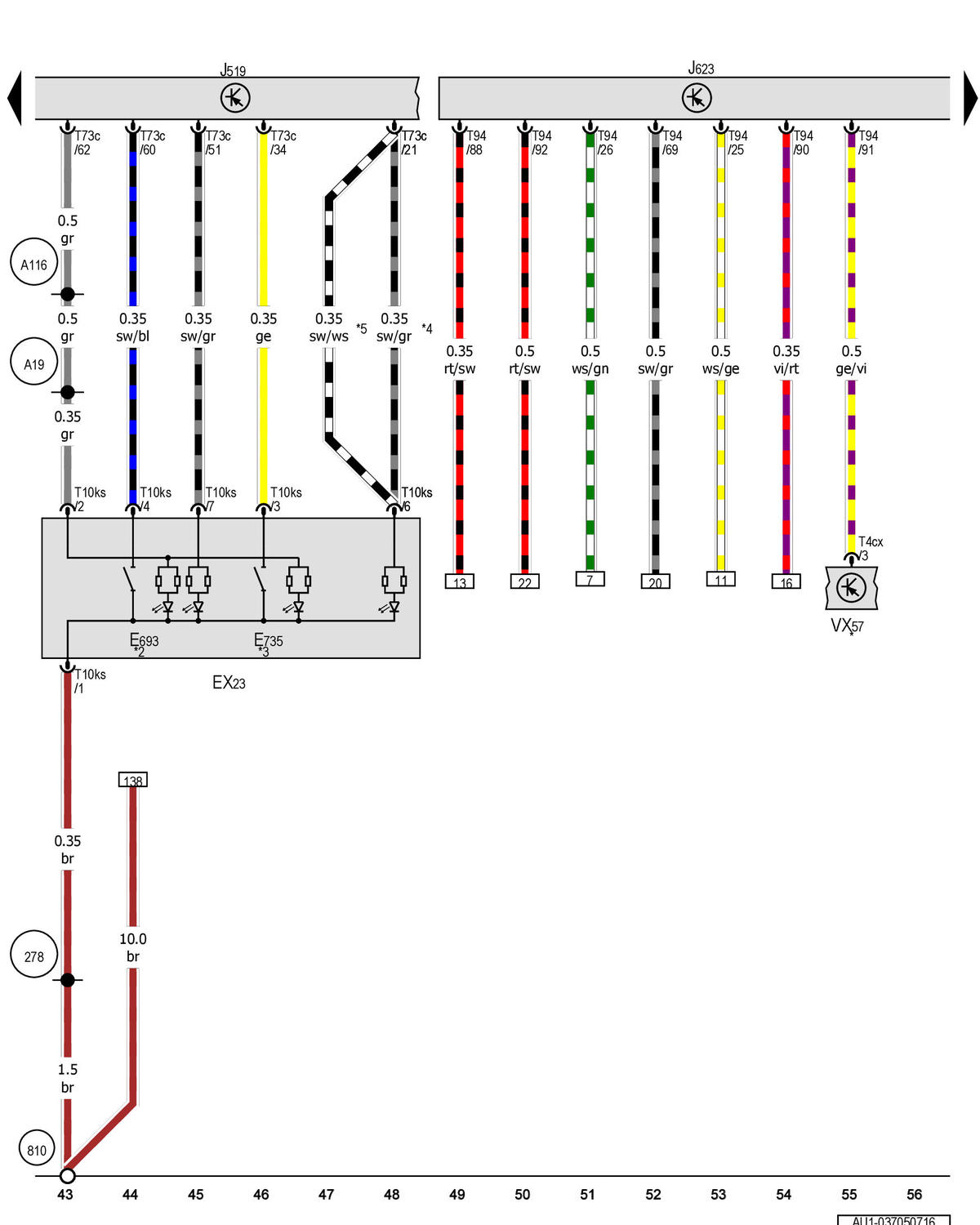

Center Console Switch Module 1, Vehicle Electrical System Control Module, Engine Control Module, Radiator Fan: Notes

GWWAU1-037050716Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
