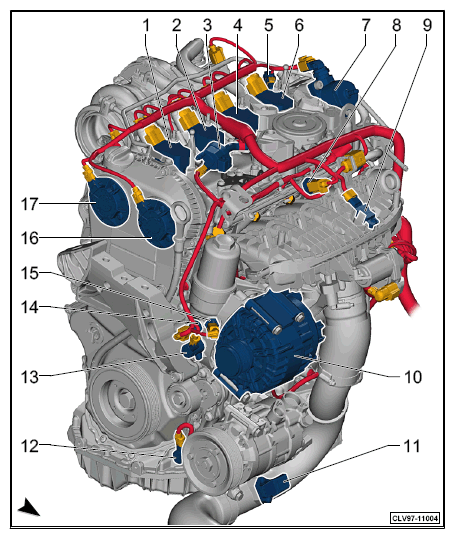

2.0L TFSI, Front View
- 1 - Ignition coil 1 with power output stage -N70-
- 2 - Ignition coil 2 with power output stage -N127-
- 3 - EVAP canister purge regulator valve 1 -N80-
- 4 - Ignition coil 3 with power output stage -N291-
- 5 - Camshaft position sensor 3 -G300-
- 6 - Ignition coil 4 with power output stage -N292-
- 7 - Fuel pressure regulator valve -N276-
- 8 - Low fuel pressure sensor -G410-
- 9 - Intake manifold sensor -GX9-
- 9 - Intake air temperature sensor -G42-
- 9 - Intake manifold temperature sensor -G72-
- 9 - Ethanol concentration sensor -G708-
- 10 - Generator with voltage regulator -CX1-
- 10 - Generator -C-
- 10 - Voltage regulator -C1-
- 11 - Charge air pressure sensor -G31-
- 12 - Oil pressure regulation valve -N428-
- 13 - Piston cooling nozzle control valve -N522-
- 14 - Oil pressure switch -F1-
- 15 - Reduced oil pressure switch -F378-
- 16 - Camshaft adjustment valve 1 -N205-
- 17 - Exhaust camshaft adjustment valve 1 -N318-
