Front Door Window, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the door inner cover -3-. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .

-- Pry out the cable bushing.

-- Lower the door window -2- until the hooks -7- in the door window are accessible.

NOTE:

If it is not possible to do this step because the window regulator motor is faulty, then remove the window regulator motor -5-.

Then the door window can be moved to the necessary position.

-- Carefully push the hooks -7- through the opening in the window glass. While doing so, slightly lift the door window so that it does not fall back into the hooks.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the door window -1- upward from the window regulator.

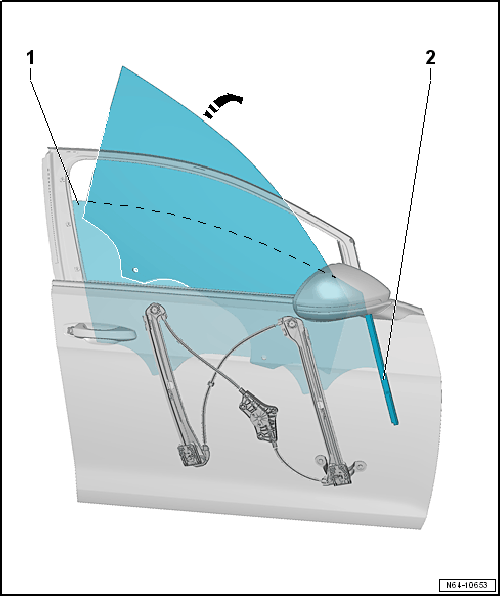

-- Lift the door window -1- at the rear and pivot it forward out of the window guides -2- in direction of -arrow-.
