Front Door Window, Removing And Installing: Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

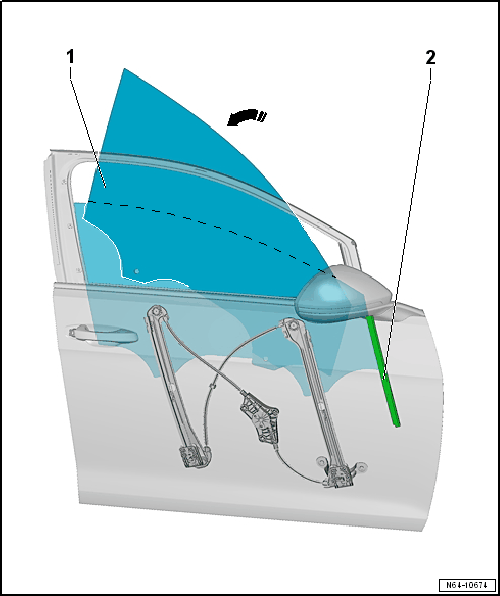

-- Pivot the door window -1- into the window guides -2- in direction of -arrow-.

NOTE:

Make sure that the door window is inserted correctly in the window guide.

-- Without using any pressure, guide the door window into the window regulator clamping brackets.

-- Align the door window to the rear window frame.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

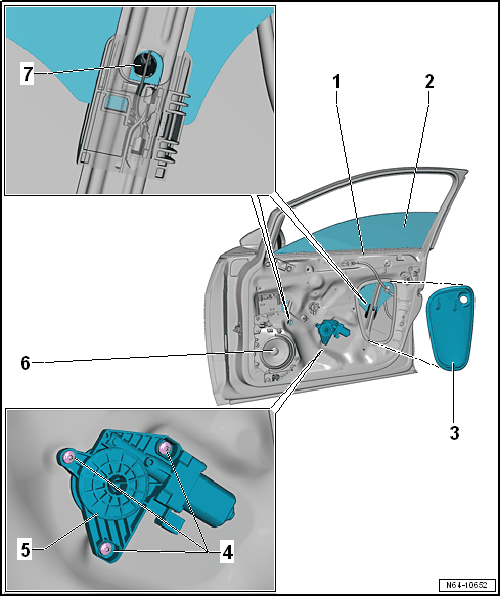

-- Push the door window -1- into the clamping brackets until the hooks -7- in the door window lock.

Perform the rest of the installation in the reverse order of removal.

-- Check the function before installing the door inner cover, cable bushing and the door trim panel.
