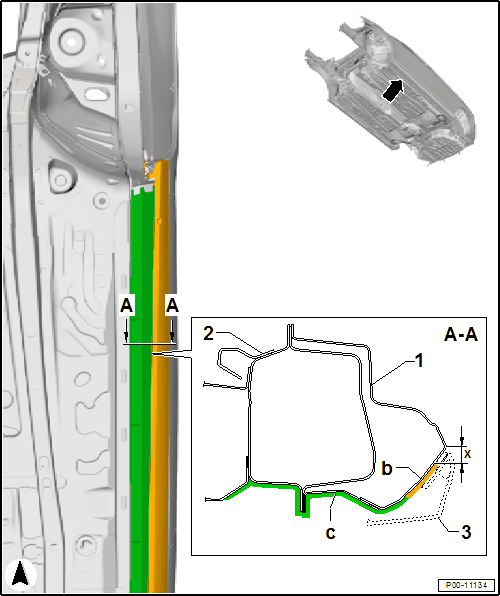

Side Sill with Sectional View Underbody Protection (R Line)
- b -Underbody Protection
- Layer thickness 0.5 mm
- c -Underbody Protection
- Layer thickness 1.2 mm
- 1 -Side Panel
- Outside
- 2 -Sill
- Interior
- 3 -Sill Panel Cover
- -Dimension -x-
- 19 mm
NOTE:
The underbody protection (stone chip protection) is to be repaired according to its original conditions in appearance and layer thickness.
Water drain holes must remain free.
All threaded pins, weld nuts with M-threads, and all other pins and contact surfaces for the assembly must be functional after applying the underbody protection.
