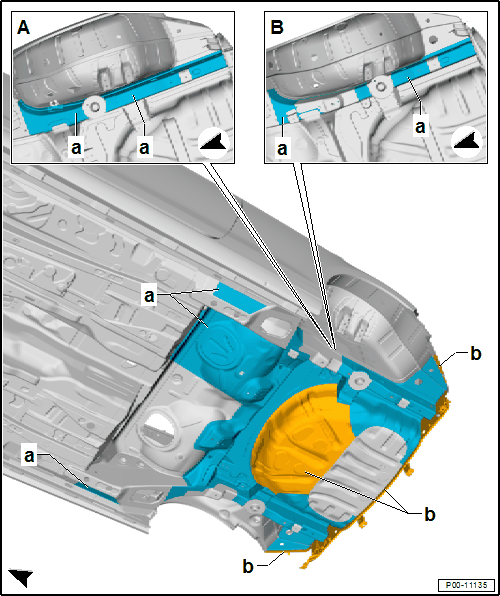

Rear Body Underbody Protection, FWD
- a -Underbody Protection
- Layer thickness 0.3 mm
- b -Underbody Protection
- Layer thickness 0.5 mm
- A -Rear longitudinal member wheel housing, torsion beam axle view
- B -Rear longitudinal member wheel housing, multi-link suspension view
NOTE:
The underbody protection (stone chip protection) is to be repaired according to its original conditions in appearance and layer thickness.
Water drain holes must remain free.
All threaded pins, weld nuts with M-threads, and all other pins and contact surfaces for the assembly must be functional after applying the underbody protection.
