Underbody Protection Areas, Also On Hybrid Vehicles

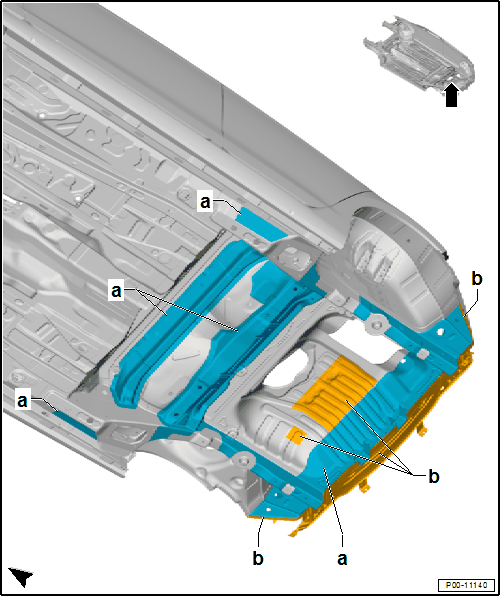

Rear Body Underbody Protection
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
a -Underbody Protection
Layer thickness 0.3 mm
b -Underbody Protection
Layer thickness 0.5 mm
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
