Rear Body Underbody Protection

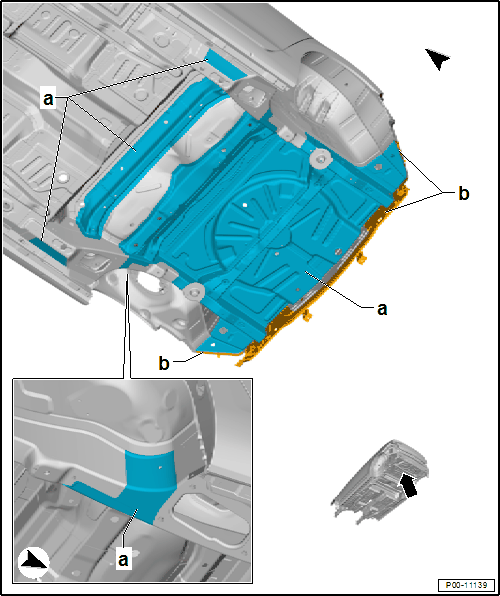

GWWP00-11139Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. a -Underbody Protection
    • Layer thickness 0.3 mm
  2. b -Underbody Protection
    • Layer thickness 0.5 mm
