Preparing for Calibration
Conditions
The blind spot detection must be calibrated for the following conditions:

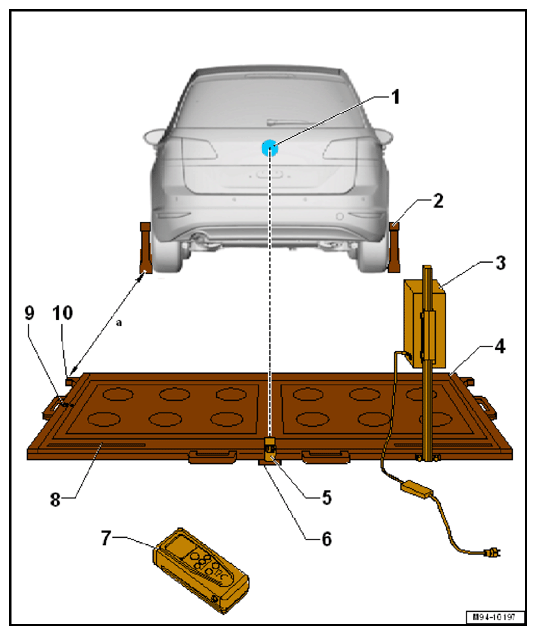

- Corresponding DTC stored in the DTC memory for the Blind Spot Detection Control Module - J1086-/Blind Spot Detection Control Module 2 - J1087-. Use the Vehicle Diagnostic Tester.NOTE: The vehicle in the illustration is only a basic outline.
- Volkswagen Logo
- The laser pointer is aligned on the center of the Volkswagen logo
- Calibration Tool - Wheel Center Mountings - VAS6350/1-
- With 17 mm wheel bolt adapter and measure paddle
- Calibration Tool - Lane Change Calibration Tool - VAS6350/4-
- Is moved from the left to the right side of measuring field during calibration
- When installed correctly, the vehicle electrical system voltage line must be connected at lower left of the calibration device (as seen in direction of travel)
- Height of the upper edge of the calibration device to the floor: 606 mm
- Calibration Unit - VAS6350A-
- Calibration Tool - Linear Laser - VAS6350/3-
- With "laser protective eyewear"
- On the Calibration Unit - VAS6350A-
- Turning on and off. Refer to the Operating Instructions.
- Plastic Foot
- Quantity: 3
- Can be adjusted when setting the horizontal position of the Calibration Unit - VAS6350A-
- Calibration Tool - Spacing Laser - VAS6350/2-
- For distance measurement
- Usage information. Refer to the Operating Instructions.
- Measuring Scale
- For positioning the Calibration Tool - Lane Change Calibration Tool - VAS6350/4-
- Dimension to be adjusted measuring point on steel ruler 621 mm
- Level
- On the Calibration Unit - VAS6350A-
- To check the horizontal position of the Calibration Unit - VAS6350A-
- Catch Bracket
- To mount the Calibration Tool - Spacing Laser - VAS6350/2- for the distance measurement
- Distance to the Calibration Tool - Wheel Center Mountings - VAS6350/1- on the rear wheels: dimension -a- 1700 ± 2 mm
