Connection Diagram - EVAP System

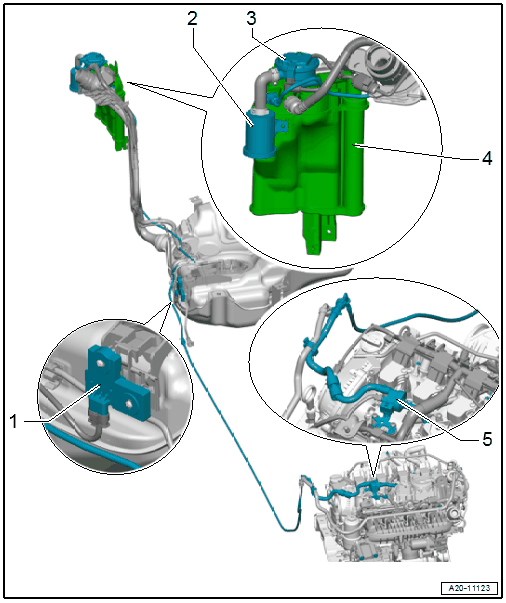

GWWA20-11123
  1. Fuel Tank Leak Detection Control Module -J909-
  2. Air Filter
    • For the leak detection system
  3. Fuel Tank Pressure Sensor -G400-
  4. EVAP Canister
    • Allocation. Refer to the Parts Catalog.
  5. EVAP Canister Purge Regulator Valve 1 -N80-
