Outer Bracket, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2020 Audi S4, 2020 Audi A4 Quattro, 2020 Audi A4, 2019 Audi S4, and 2019 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
-- Cover the control module -2- with a soft towel.
CAUTION:
There is a risk of destroying the windshield projection head up display control module.
- Only remove the designated bolts from the control module.
- Never remove the bolts for the housing upper section.
-- Remove the bolts -1, 3 and 4-.
-- Lift the control module slightly and disconnect the connector.
-- Remove the control module.

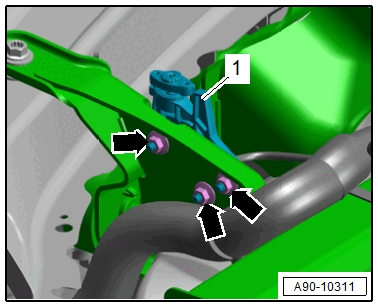

-- Remove the nuts -arrows-.
-- Remove the bracket -1-.
