Windshield Projection Head Up Display Control Module, Calibrating

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2020 Audi S4, 2020 Audi A4 Quattro, 2020 Audi A4, 2019 Audi S4, and 2019 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Vehicle Diagnostic Tester
Calibration Board for Head-Up Display :VAS721005

Conditions

-- The windshield projection control module must be calibrated under the following conditions:

The Windshield Projection Head Up Display Control Module -J898- was replaced.
The windshield was removed and installed.
"No or incorrect basic setting/adaptation" is stored in the DTC memory.

Preliminary Work

-- Move the vehicle onto a secure flat surface.

-- Apply the parking brake - the vehicle must not move during the measurement.

-- Fold down the left and right sun visors, disengage them and move them to the side.

Courtesy of AUDI OF AMERICA, LLC

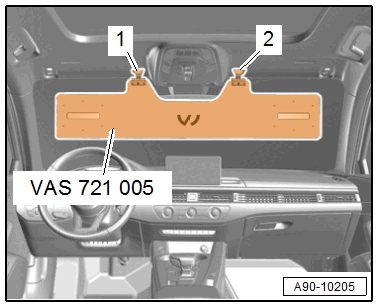

-- Engage the :VAS721005 on the center support -1 and 2- for the sun visor.

Calibrating Procedure

The Vehicle Diagnostic Tester is connected.

-- Select and start the Diagnostic operating mode.

-- Select the Test plan tab.

-- Select the Select individual test button and select the following tree structure consecutively:

Body
Electrical system
01 - OBD-capable systems
82 - Windshield Projection Head Up Display Control Module - J898
82 - Windshield projection control module, functions
82 - Head up display calibration

-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.

-- After calibrating the windshield projection control module successfully, end "calibration", turn off the ignition and disconnect the diagnostic connector.
