Instrument Cluster With Instrument Cluster Control Module -J285-, Removing And Installing, Low/Mid Instrument Cluster: Removing

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2020 Audi S4, 2020 Audi A4 Quattro, 2020 Audi A4, 2019 Audi S4, and 2019 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Switch off the ignition and place the ignition key outside of the vehicle.

-- Remove the left and right instrument panel vent. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .

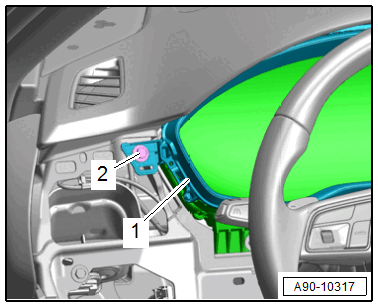

-- Remove the bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument cluster trim -1-.

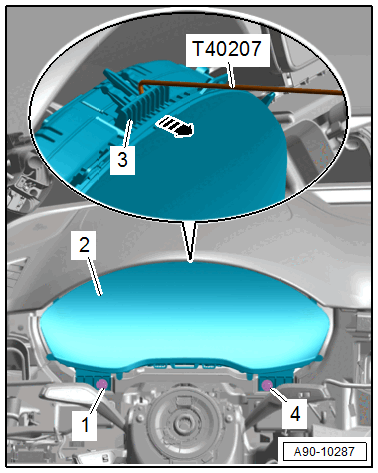

-- Remove the bolts -1 and 4-.

Courtesy of AUDI OF AMERICA, LLC

-- Guide the :T40207 between the instrument panel and instrument cluster and attach it in the center as shown -3-.

-- Using the :T40207 , remove the instrument cluster -2- from the retainer in the direction of -arrow- and tilt toward the rear.

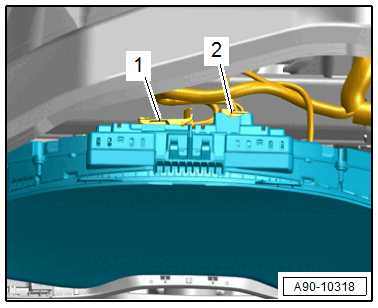

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Mid instrument cluster: Disconnect the connector -2- for the fiber-optic cable.

-- Seal the open wiring harness connector -2- of the fiber-optic cable with the : VAS6223/9 -1-.

Courtesy of AUDI OF AMERICA, LLC

TIP:

The protective cap prevents contamination of or mechanical damage to the front surface of the fiber-optic cable which would impair light transmission.

-- Remove the instrument cluster on the front passenger side between the steering wheel and the instrument panel.
