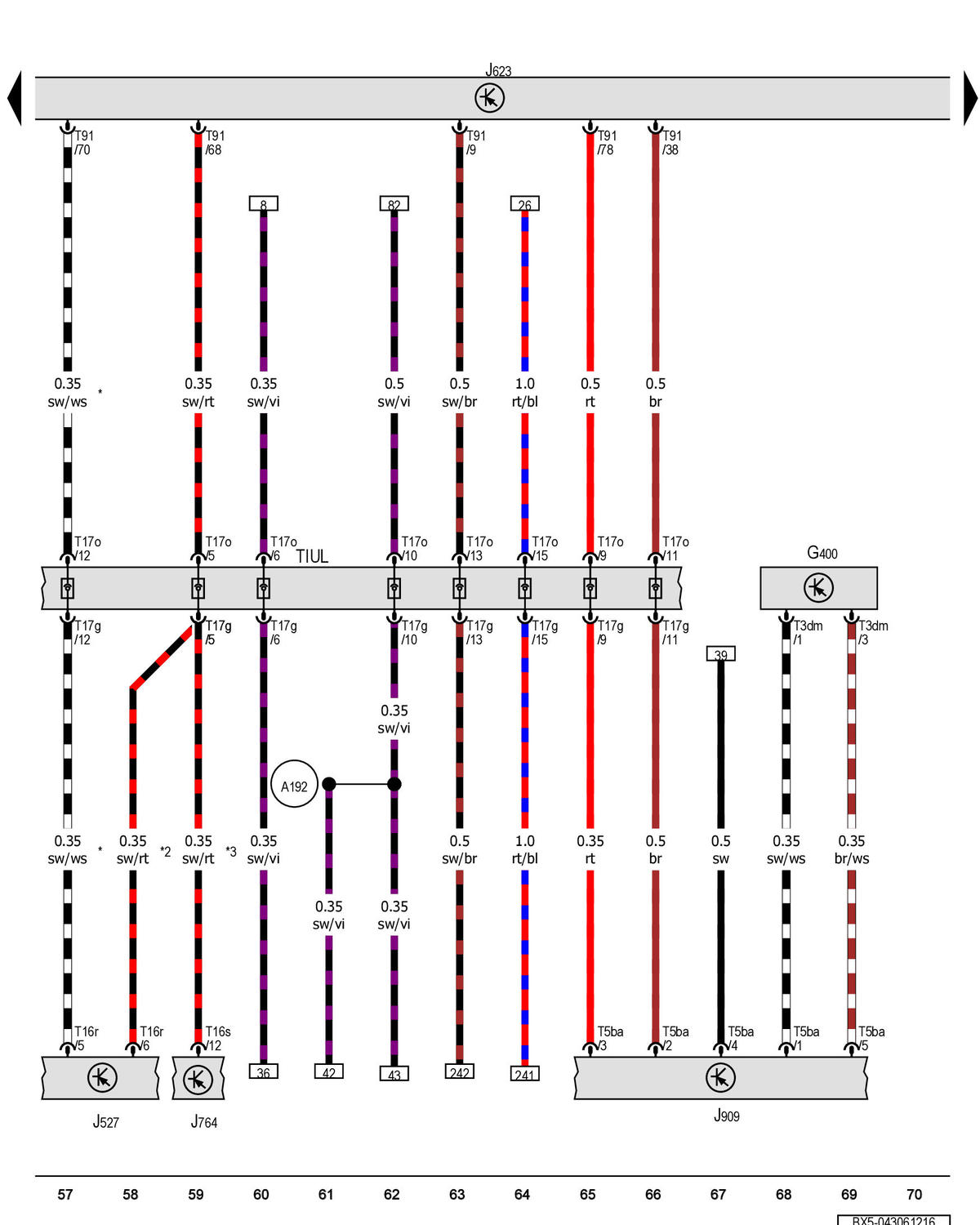

Fuel Tank Pressure Sensor, Steering Column Electronics Control Module, Engine Control Module, Electronic Steering Column Lock Control Module, Fuel Tank Leak Detection Control Module

G400

Fuel tank pressure sensor Type:BT, Slpdok:, Aim:BTG400 Type:VA, Slpdok:, Aim:VAG400

J527

Steering column electronics control module Type:BT, Slpdok:, Aim:BTJ527

J623

Engine control module

J764

Electronic steering column lock control module Type:BT, Slpdok:, Aim:BTJ764 Type:VA, Slpdok:, Aim:VAJ764

J909

Fuel tank leak detection control module Type:BT, Slpdok:, Aim:BTJ909 Type:VA, Slpdok:, Aim:VAJ909

T3dm

3-pin connector, naturally cloudy

T5ba

5-pin connector, black

T16r

16-pin connector, black

T16s

16-pin connector

T17g

17-pin connector, blue Type:BT, Slpdok:, Aim:BTT17g

T17o

17-pin connector, blue

T91

91-pin connector, black

TIUL

Coupling point in interior, bottom left

Positive connection 3 (15a) (in instrument panel wiring harness)

*

Only for vehicles with cruise control

*2

Only for vehicles without access/start authorization system

*3

Only for vehicles with access/start authorization system
