Vehicle Data Label

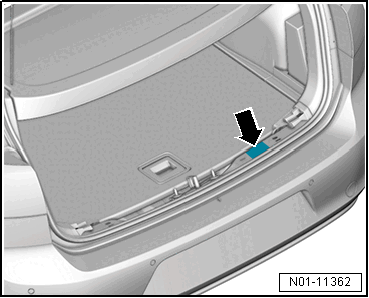

The vehicle data label -arrow- is located on the vehicle under the right rear lock carrier trim panel. The vehicle data label is also in the customer maintenance schedule.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Procedure Description for Removing Lock Carrier Trim Panel:

Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

The Label Contains The Following Vehicle Data:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - Vehicle Identification Number (VIN)

2 - Vehicle Model, Engine Output, Transmission

3 - Engine and Transmission Codes, Paint Number, Interior Equipment

4 - Optional Equipment, PR Numbers

The sticker inside the customer maintenance schedule contains the same information. The legend is under the sticker.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
