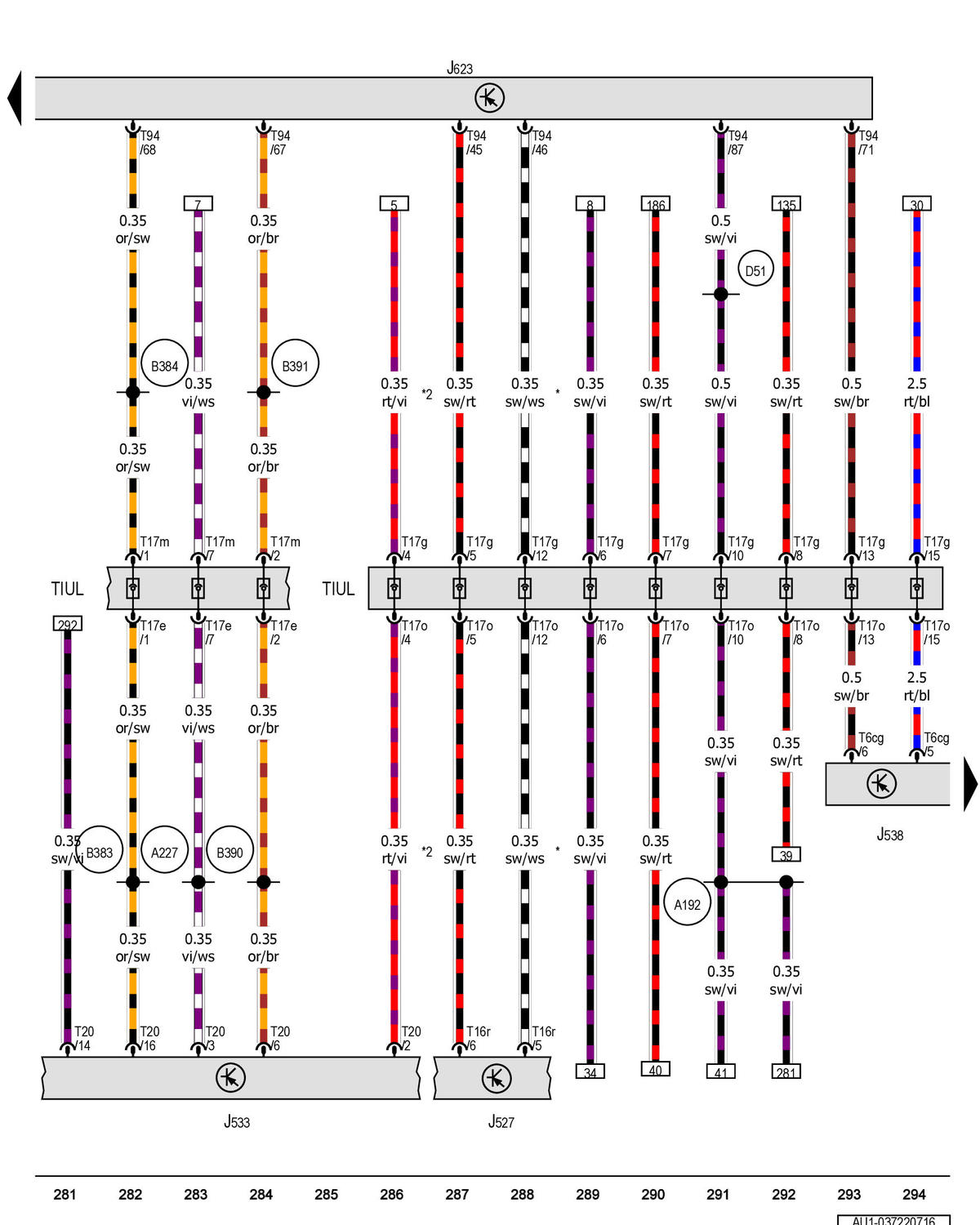

Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Fuel Pump Control Module, Engine Control Module: Notes

GWWAU1-037220716Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
