Cam Position Sensor -G40-, REMOVING AND INSTALLING: Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

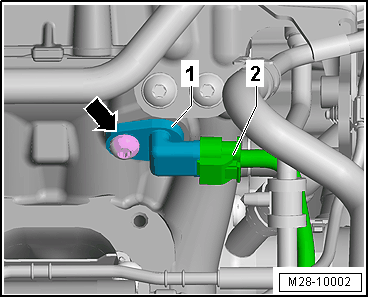

Fig 1: Identifying Camshaft Position Sensor, Connector And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow- and camshaft position sensor -1-.
