Halogen Headlamps, Adjusting

NOTE:

Adjusting the headlamps is invoiced separately.

NOTE:

Make sure, if present, both headlamps work identically when operating the manual headlamp range control.

-- Adjust the corresponding angle dimension on the headlamp adjusting unit. Refer to HALOGEN HEADLAMPS, ADJUSTING for ECE headlamps, or refer to HEADLAMP ADJUSTMENT, CHECKING (SAE) for SAE headlamps.

Halogen Headlamp Overview:

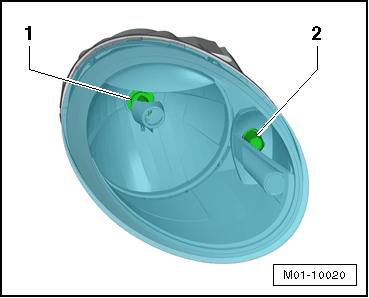

Fig 1: Identifying Low Beam Or High Beam Bulb And Parking Lamp Or Daytime Running Lamp Bulb

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Headlamp Lateral and Height Adjustment:

Adjusting screws for left headlamp are a mirror image.

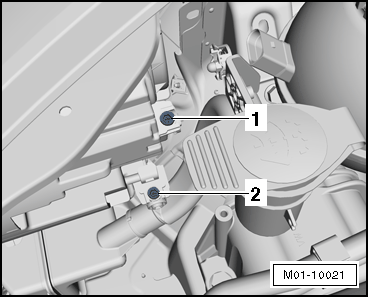

Fig 2: Identifying Adjustment Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Adjusting screw (inner hex socket) for height adjustment of low beam cut-off line -1-.
Adjustment screw (inner hexagon) for lateral adjustment of low beam cut-off line -2-.

NOTE:

In some markets the lateral adjustment adjusting screw -2- is sealed. Lateral adjustment is not permitted.

-- First turn adjustment screw -1- to adjust height of cut-off line.

-- Then the side adjustment must be checked and corrected with adjustment screw -2- if necessary.
