Overview - Selector Mechanism

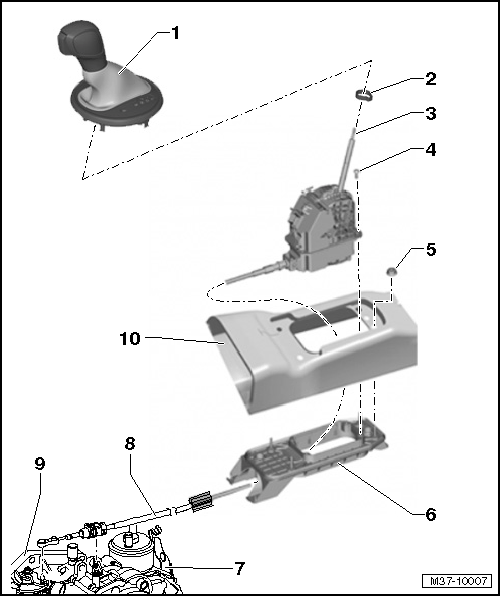

Fig 1: Identifying Selector Mechanism Components Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Selector Lever Handle
- With selector lever boot and cover
- Button in Handle, Moving Into Installation Position. Refer to BUTTON IN HANDLE, MOVING INTO INSTALLATION POSITION .
- Removing and Installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
Clamp
- Replace after removing
Selector Mechanism with Selector Lever Cable
- With integrated Selector Lever Sensor System Control Module -J587- with Selector Lever -E313-, Tiptronic Switch -F189-, Selector Lever Park Position Lock Switch -F319- and Shift Lock Solenoid -N110-.
- The selector lever cable can only be replaced together with the selector mechanism
- Removing and Installing. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Selector Mechanism, Checking. Refer to SELECTOR MECHANISM, CHECKING .
Bolt
- 8 Nm
Hex Nut with Collar
- 8 Nm
- Quantity: 4
Selector Housing
- Only available together with the selector mechanism. Refer to the Parts Information.
Cable Bracket
- For the selector lever cable
Selector Lever Cable
- Selector Lever Cable, Checking and Adjusting. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING
Transmission
Tunnel/Body
