Convertible Top End Piece, Cleaning And Lubricating

Special Tools And Workshop Equipment Required

CAUTION:

Hold a cloth under the respective places to protect the vehicle interior from debris.

End Piece Cleaning and Lubricating

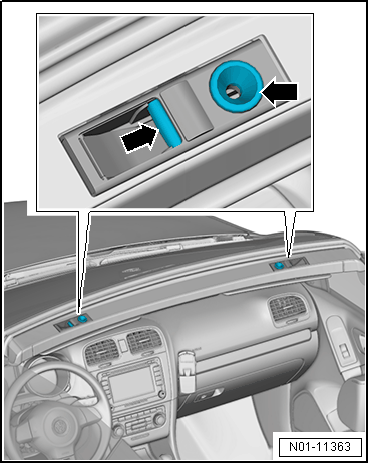

Fig 1: Applying Lubricant G 060 751 A2 In Marked Positions

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove any remaining lubricant and contaminates from the end piece with a lint-free cloth.

-- in the marked positions -arrows- of the end piece apply the Grease:G 060 751 A2 with a commercially available paint brush.

-- Remove any excess lubricant with a lint-free cloth.

-- Repeat the process for the opening on the opposite side of the vehicle.
