Accessories, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the Information Electronics Control Module 1 -J794-. Refer to appropriate service information .

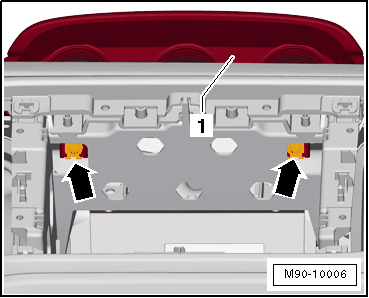

-- Remove the bolts -arrows- and remove the accessories and the cover -1- upward from the instrument panel.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector.

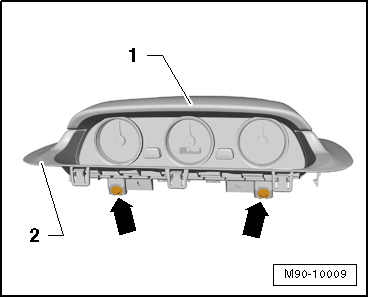

-- Remove the bolts -arrows- from the cover -2- and then remove the accessories -1- from the cover -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
