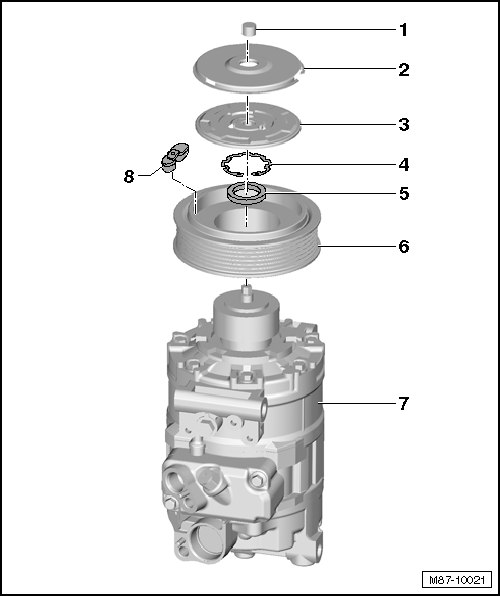

Overview - A/C Compressor
WARNING: This page is about a different variant/trim than selected.
NOTE:
Different ribbed belt pulley versions may be installed, depending on A/C compressor type and engine version. Refer to the Parts Information.
- Cap
- Cover with Locking Ring
- Remove carefully using a small screwdriver or needle-nose pliers (pay special attention to ribbed belt pulley when doing this)
- Drive Plate
- Remove with the Wrench - Pin Type:3212
- Circlip
- Replace after removing .
- Install on correct side (flat side toward A/C compressor)
- Spacer
- Ribbed Belt Pulley
- There are different versions. Refer to the Parts Information.
- A/C Compressor
- Depending on engine and market version, different versions can be installed. Refer to the Parts Information.
- Clean the A/C compressor flange before sliding on the ribbed belt pulley
- Rubber Element
- Decouples the ribbed belt pulley from the A/C compressor input shaft and dampens vibration and noise
- For installation, lightly coat rubber elements, for example with tire mounting paste or a soap solution (as a lubricant)
- Quantity: 6
