Left/Right Rear Bass Speaker -R15- / -R17-, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal while noting the following:

NOTE:

Secure the speaker using only the specified pop rivets. Refer to the Parts Information.

-- Secure the pop rivets -arrows- using the : VAS5072A .

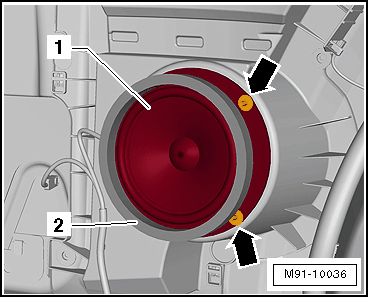

Fig 1: Identifying Foam Strip

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The foam strip -2- must contact the speaker.
