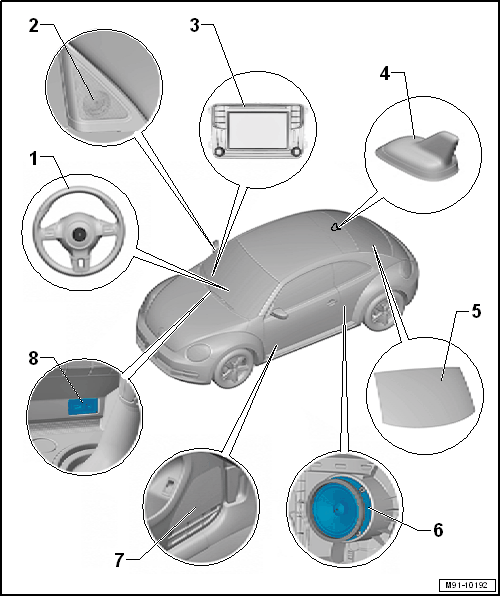

Component Location Overview - Infotainment System
WARNING: This page is about a different variant/trim than selected.
- Multifunction Steering Wheel
- Left Multifunction Buttons on Steering Wheel -E440-
- Right Multifunction Buttons on Steering Wheel -E441-
- Removing and Installing. Refer to RIGHT/LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
- Front Treble Speaker
- Inside the mirror triangle
- Removing and Installing. Refer to LEFT/RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- Inside the center of the instrument panel
- Connected with Front Information Display Control Head -J685-
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Satellite Antenna -R170-
- Coupe: in the Roof Antenna -RX5-
- Cabriolet: in the center instrument panel/in the spoiler
- Refer to ANTENNA SYSTEMS for more information.
- Window Antennas
- Coupe: inside the rear window
- Cabriolet: inside the windshield
- Refer to ANTENNA SYSTEMS for more information.
- Rear Speaker
- In the side trim
- Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM
- Front Bass Speaker
- In the lower door
- Removing and Installing. Refer to LEFT/RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING .
- External Multimedia Device Connection
- In the front center console storage compartment
- Composition Color: USB Connection 1 -U41-
- Composition Media: External Audio Source Connection -R199-
- USB Connection 1 -U41-, Removing and Installing. Refer to CONNECTION FOR EXTERNAL MULTIMEDIA DEVICES, REMOVING AND INSTALLING .
- External Audio Source Connection -R199-, Removing and Installing. Refer to CONNECTION FOR EXTERNAL MULTIMEDIA DEVICES, REMOVING AND INSTALLING .
