Selector Mechanism, Removing And Installing: Removing

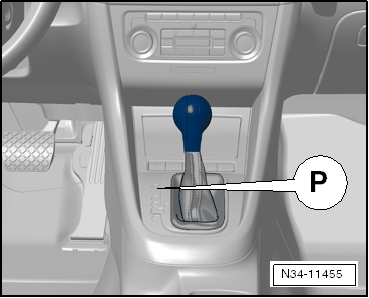

Fig 1: Identifying Selector Lever In "P" Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the selector lever into "P".

-- Remove the selector lever handle and disconnect the connector -2- from the cover while doing so. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Disconnect the connector -1- from the selector mechanism to the vehicle wiring harness.

-- Remove the engine cover, if necessary. Refer to ENGINE COVER, REMOVING AND INSTALLING (CPLA, CPPA, CPKA, CPRA) .

-- Remove the complete air filter housing:

Gasoline engine. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
Diesel engine. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the lock washers -A and B-. The lock washers must later be replaced when adjusting cable.

Fig 2: Identifying Adjustment Bolt And Lock Washers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Loosen the adjusting screw -arrow-.

NOTE:

Use pliers to remove the lock washer -B- from the cable bracket. Do not use a sharp-edged lever. Otherwise the selector lever cable could get damaged.

-- Raise the vehicle.

-- Remove the front and rear tunnel braces from the body. Refer to TUNNEL BRACE, REMOVING AND INSTALLING .

CAUTION:

There is a danger of causing damage to the decoupling element.

Do not bend the decoupling element more than 10°.
Do not load the decoupling element.
Do not damage the wire mesh on the decoupling element.

-- Remove the front exhaust pipe with the catalytic converter. Refer to OVERVIEW - EMISSIONS CONTROL (CPLA, CPPA, CPKA, CPRA) .

-- Disengage the center and rear mufflers from the retaining loops and secure them to the body with wire, for example. Refer to OVERVIEW - MUFFLER (CPLA, CPPA, CPKA, CPRA) .

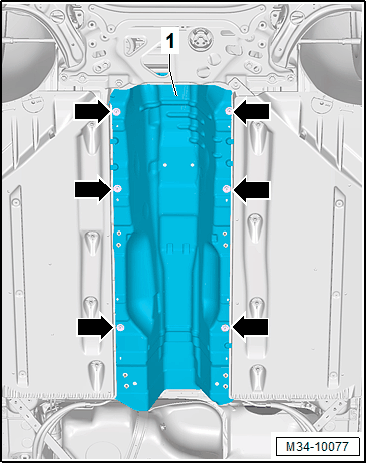

-- Remove the lock washers -arrows- and remove the center tunnel heat shield -1- under the gearshift mechanism.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lower the underbody trim panel on the inside just enough until the center tunnel heat shield -1- can be removed.

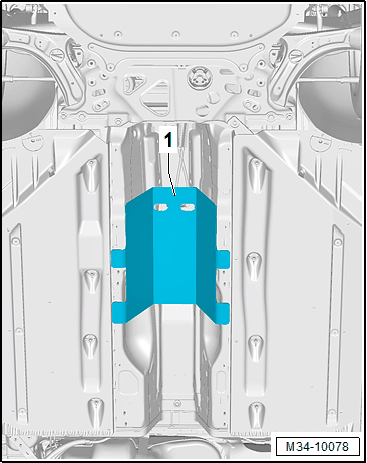

-- If equipped, remove the damper for the tunnel -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

A second technician is required under the vehicle to remove the selector mechanism.

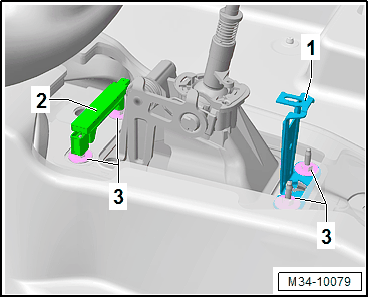

-- If equipped, remove the Access/Start System Antenna 1 in Vehicle Interior -R138- -2- from the front nuts. Refer to ACCESS/START SYSTEM ANTENNA 1 IN VEHICLE INTERIOR -R138-, REMOVING AND INSTALLING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The illustration above shows the gearshift mechanism for a manual transmission.

-- Remove the rear nuts -3- and remove the center console support -1-.

-- Then remove the front nuts -3- for the gearshift housing.

NOTE:

The selector mechanism can also be removed without having to remove the selector housing.

To do this, remove the four bolts -item ) OVERVIEW - SELECTOR MECHANISM - List Item: Bolt.

Fig 3: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Remove the selector mechanism with the selector lever cable inside the vehicle interior in the direction of -arrow-.

Fig 4: Identifying Removal Of Selector Mechanism

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The selector mechanism is available only together with the selector housing and selector lever cable. Refer to the Parts Information.
