Selector Lever Handle, Removing And Installing: Removing

The handle is removed together with the shift cover.

-- Move the selector lever into "D" position.

It is not necessary to pull out the button -A- manually. The push button locks in the installation position by itself when the handle is removed.

Fig 1: Removing Selector Lever Handle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully unclip the cover -B- using the : 3409  .

-- Fold the cover -B- up over the handle.

-- Disconnect the connector -A- for the Selector Lever Scale Illumination Bulb -L101-.

-- Open the clamp -arrow- under the handle.

-- Pull the handle with the cover upward. Do not press the button while doing this.

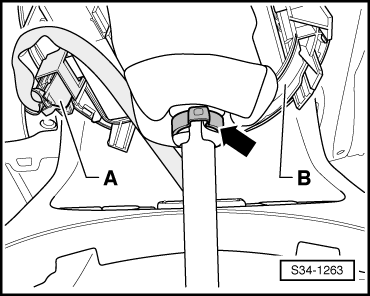

Fig 2: Opening Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
