Selector Lever Handle, Removing And Installing: Installing

Install in reverse order of removal. Note the following:

It is Possible that the Button -arrow- is Pressed into the Handle. Never Install the Handle when the Button is Pressed in.

Fig 1: Identifying Caution For Button

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The selector lever is in the "D" position.

NOTE:

Move the button into the installation position. Refer to BUTTON IN HANDLE, MOVING INTO INSTALLATION POSITION .

A new handle is delivered with an assembly fastener. Pull out the safety catch in the direction of -arrow- just before installing.

Fig 2: Identifying Direction To Pull Out Assembly Aid Just Prior To Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The installation position can be set again using the assembly fastener. Refer to BUTTON IN HANDLE, MOVING INTO INSTALLATION POSITION .

-- Push the handle with a new clamp -arrow- completely onto the selector lever.

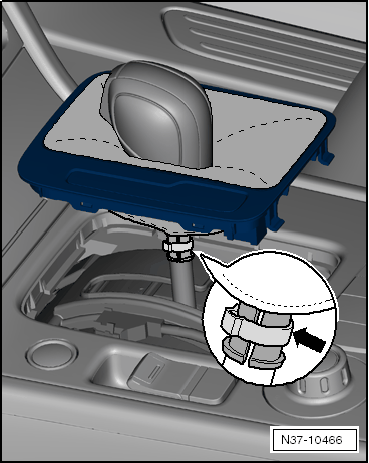

Fig 3: Clamp Under Boot

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The button faces forward.

-- Tension the new clamp using the : VAG1275A .

-- Press the button after installation.

NOTE:

If the button stays in the handle after being pressed, this means it was installed incorrectly. If this happens, remove the handle again and move the button into the installation position again. Refer to BUTTON IN HANDLE, MOVING INTO INSTALLATION POSITION . Then the handle can be installed again.
