Overview - Selector Mechanism

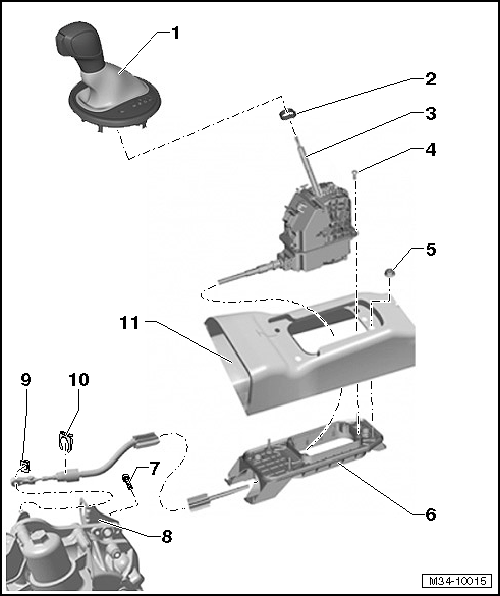

Fig 1: Exploded View Of Selector Mechanism Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Selector Lever Handle
- With selector lever boot and cover
- Button in handle, moving into installation position. Refer to BUTTON IN HANDLE, MOVING INTO INSTALLATION POSITION .
- Removing and installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
Clamp
- Replace after removing
Selector Mechanism with Selector Lever Cable
- With integrated Selector Lever -E313- with Selector Lever Sensor System Control Module -J587-, Tiptronic Switch -F189-, Selector Lever Park Position Lock Switch -F319- and Shift Lock Solenoid -N110-.
- Removing and installing. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Selector mechanism, checking. Refer to SELECTOR MECHANISM, CHECKING .
- Selector lever cable, checking and adjusting. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING
Bolt
- 8 Nm
Hex Nut with Collar
- 8 Nm
- Quantity: 4
Selector Housing
- Only available together with the selector mechanism. Refer to the Parts Information.
Bolt
- 20 Nm +90°
- Replace after removing
- For attaching the cable bracket to the transmission
- Quantity: 2
Cable Bracket
- For the selector lever cable
Lock Washer
- Replace after removing
Lock Washer
- Replace after removing
- Installed location: the offset side faces forward, toward the front of the vehicle.
Tunnel/Body
