Transmission Identification

Example -arrow- :

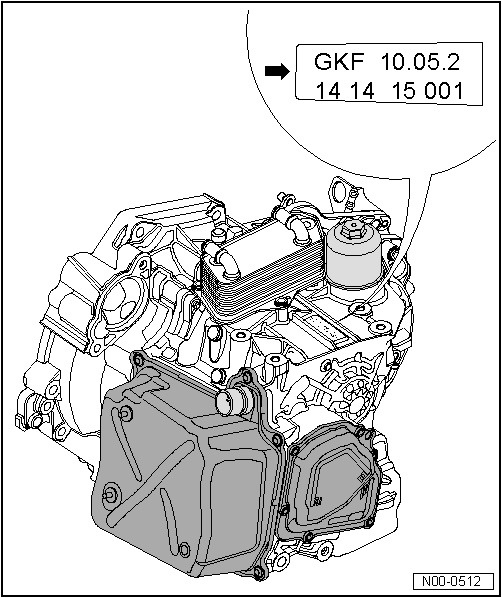

Fig 1: Locating Transmission Identification

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GKF - Transmission Code
10.05.2 - 05/10/2002
14 - Plant Code
14 15 - Time
001 -Serial Number

Reading the Transmission Code on the Transmission Installed

Fig 2: Identifying Left Assembly Mounting Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

To read the transmission code letters under the console directly from the transmission, the engine and transmission must be supported. The left subframe mount transmission bracket -A- must be removed. It is important to lower the engine/transmission just enough until it is possible to slide the bracket toward the rear. Do not lower farther otherwise the pendulum support will be damaged. Transmission bracket, removing and installing. Refer to TRANSMISSION, REMOVING AND INSTALLING .

NOTE:

Additionally the transmission code it on top of the transmission near the selector lever cable -arrows-.

Fig 3: Locating Additional Code Letters (Some Transmissions)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The transmission code is also listed in the vehicle data plates.
