Center Console, Removing And Installing: Installing

-- Install in reverse order of removal. Note the following:

NOTE:

Check all the fasteners for damage and replace if necessary before installing. Replace any damaged components.

Vehicles with Center Armrest

-- Install the center armrest support -4- and tighten the bolts -3-.

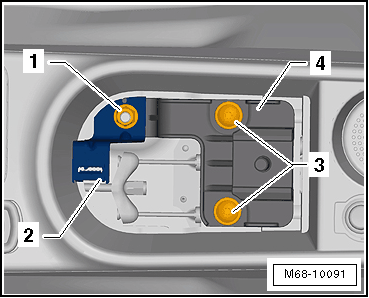

Fig 1: Identifying Nut, Mount And Bolts
GWWM68-10091Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bracket -2- and tighten the nut -1-.

-- Install the center armrest. Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING .

Continuation for All Vehicles

-- Secure the footwell trim panel -1- in the guides on the center console -2-.

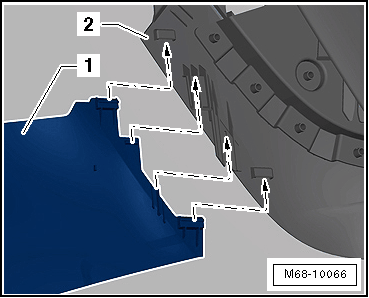

Fig 2: Identifying Footwell Trim Panel And Center Console
GWWM68-10066Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the parking brake lever trim. Refer to PARKING BRAKE LEVER TRIM, REMOVING AND INSTALLING .
