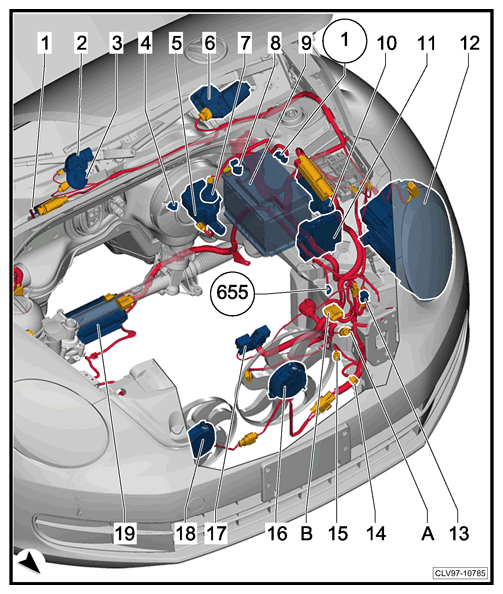

Engine compartment, left side, section 1
- 1 - Transmission Control Module -J217-
- For the other component location → Item 11
- 1 - Engine Sound Generator Control Module -J943-
- 2 - Engine Sound Generator Actuator 1 -R257-
- 3 - Alarm Horn -H12-
- 4 - Vacuum Sensor -G608-
- 5 - Brake Lamp Switch -F-
- 5 - Brake Pedal Switch -F47-
- 6 - Wiper Motor Control Module -J400-
- 6 - Windshield Wiper Motor -V-
- 7 - Brake Fluid Level Warning Switch -F34-
- 8 - Battery Monitoring Control Module -J367-
- 9 - Battery -A-
- 10 - Engine Control Module -J623-
- 11 - Transmission Control Module -J217-
- For the other component location → Item 1
- 12 - Left Front Headlamp -MX1-
- Left headlamp beam adjustment motor -V48-
- 13 - Driver Front Airbag Crash Sensor -G283-
- 14 - Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- 15 - Secondary Air Injection Pump Motor -V101-
- 16 - Radiator Fan -VX57-
- 17 - Engine Hood Contact Switch -F266-
- 18 - Radiator Fan 2 -V177-
- 18 - Right Radiator Fan -V35-
- 19 - Steering Angle Sensor -G85- with Servotronic
- For vehicles without Servotronic see steering, section I
- 19 - Steering Torque Sensor -G269-
- 19 - Electromechanical Power Steering Motor -V187-
- A - 8-Pin Connector -T8o-
- B - 14-Pin Connector -T14a-
- 1 - Ground strap, battery to body
- 655 - Ground connection on left headlamp
